Download support file

A Support file can be downloaded from the instrument and is used to assist you in the best possible manner.

  • If you are working with the 1MHz 2D profiler you use Nortek Deployment.
  • If you are working with the 400kHz 2D profiler, you can either use Nortek Deployment or the web interface.

Nortek deployment

A Support File can be downloaded via the software to help resolve both instrument-specific issues and potential software bugs. This file includes Instrument logs as well as Software logs, which are essential for effective troubleshooting and enable the Support team to assist you in the most efficient way possible.

How to download the support file:

  • Connect to the instrument using the Nortek Deployment software.
  • Go to Support > Get Support Files
  • Select the output folder and click 'save'
  • The software will generate and save a .zip file which can then be shared with Nortek Support.

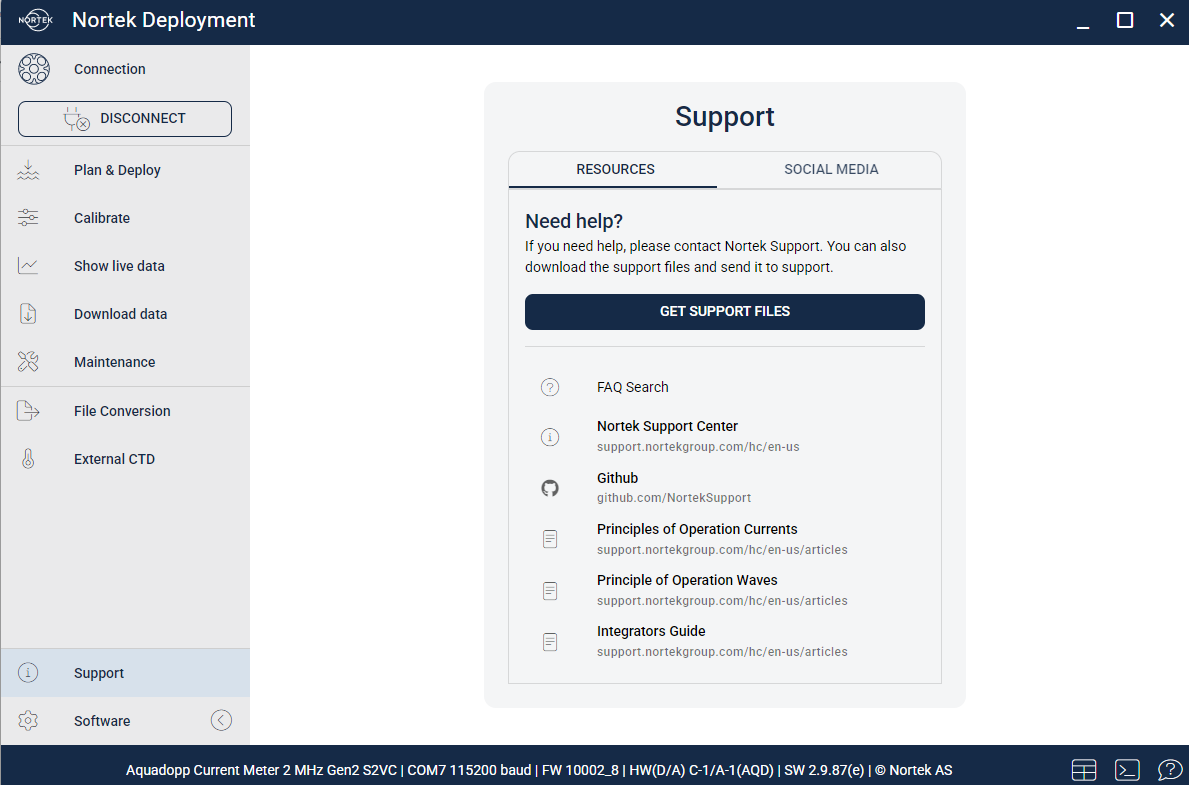

Figure:  Support page within nortek deployment



Web interface

  • Use the Plug and Play feature to find the IP address for the system.
  • Copy the IP address and paste it into your browser.
Figure: Usage of IP-address in web browser
  • Under the “Maintenance” tab, select Retrieve Support File.

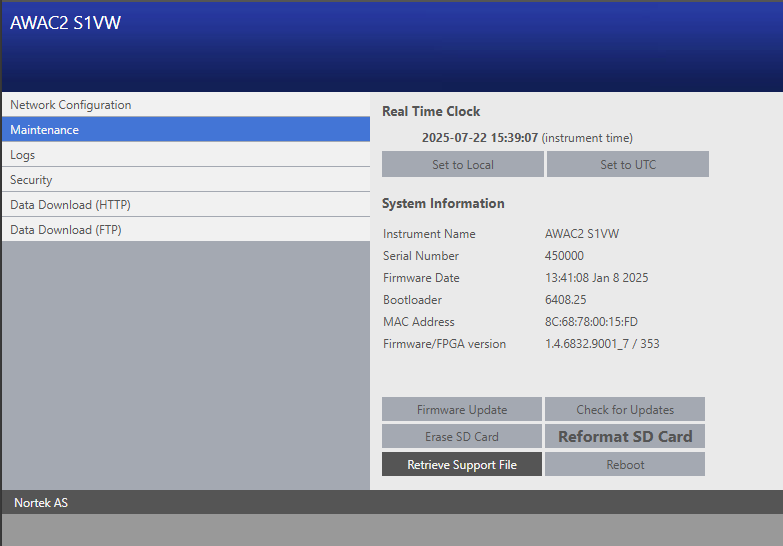

Figure: Web interface support file retrieval
  • Find the NortekSupport_....tar.gz under Downloads on your PC and send it to Nortek.
