Correlation in pulse-coherent Doppler instruments reflects the signal quality used to compute velocity from the phase shift between successive acoustic pulses. High correlation indicates reliable velocity tracking, while low correlation suggests signal degradation due to factors such as turbulence, weak scatterers, or boundary interference. Because velocity estimation relies directly on these phase shifts, maintaining strong correlation is essential for accuracy. While both profilers (in HR mode) and the Vector's are based on the same underlying principles, their differing geometries and sampling strategies result in distinct correlation behavior across their respective measurement volumes.
In HR profilers, each acoustic beam samples a sequence of range cells along its slanted path. As range increases, the returned signal typically weakens due to beam spreading, attenuation, and reduced scatterer density. This results in a progressive decline in correlation with distance from the instrument. Lower correlation at far range cells can introduce uncertainty in phase interpretation, reduce data reliability, and complicate phase unwrapping. The correlation for both a Vector and profiler in HR mode is demonstrated in the figure below.

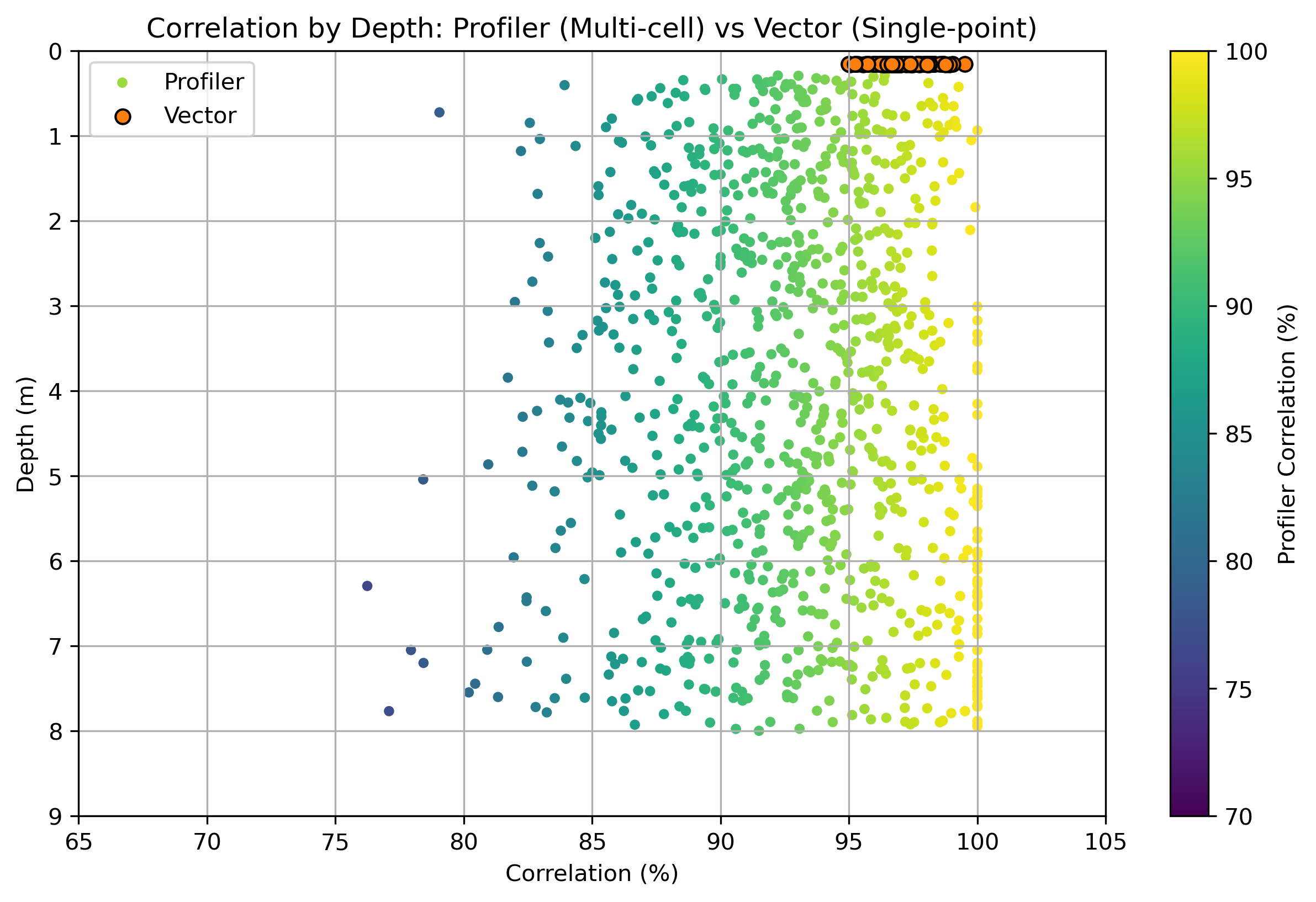

By contrast, the Generation 2 Vector samples at a fixed, tightly focused point, located approximately 15 centimeters from the central transducer. Its bistatic beam configuration ensures that all three receiver beams converge on the same location, producing consistently high correlation values across all measurements. The short acoustic travel distance and compact sampling volume minimize signal loss and reflection complexity, resulting in stable and strong phase. The figure below illustrates how correlation varies with depth for the two instrument types. The profiler shows individual correlation values across multiple range bins, while the Vector samples the same volume and thus provides correlation at a fixed depth for all measurements.
💡 Note: While typical correlation patterns differ between profiling instruments and the Vector, it’s important to recognize that low correlation can occur at any point within the measurement volume, often as a result of poor scattering conditions such as low particle density, stratification, or signal absorption.
