The Generation 2 Vector can be operated with an external battery canister, and various options are available from Nortek. Please find below a guide on how to open and install the default 76 Wh lithium-Ion rechargeable battery. The battery fits tightly inside the canister and must be properly positioned for the lid to close. The connector is located near the battery. Checking the O-rings is important; to do this please refer to the FAQ: Connector Care
Opening the instrument

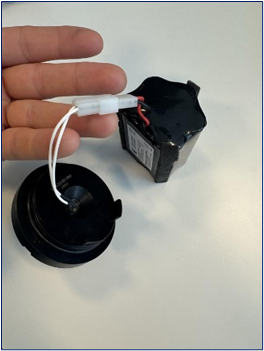

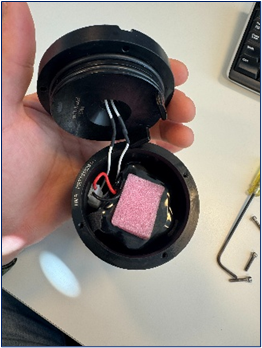

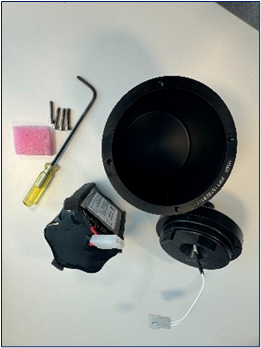

Unscrew and open the endbell using the appropriate Allen key (Step 1). Remove the endbell (Step 2), by gently pushing or pulling it straight out of the housing (Do not twist). Pull out the battery from the housing (Step 3).
Step 1 |
Step 2 |
Step 3 |
Changing the batteries & closing the instrument
The Generation 2 Vector can be setup for autonomous (standalone) deployments by using an external battery canister. Many battery options are available from Nortek, and here we're showing the default option, which is a rechargeable lithium-ion 76 Wh battery.

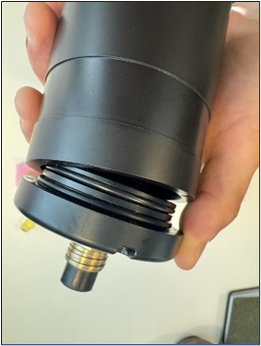

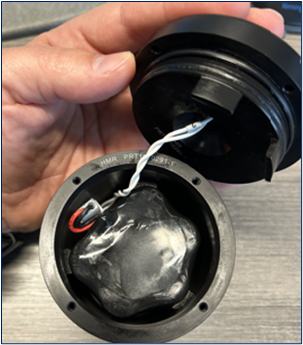

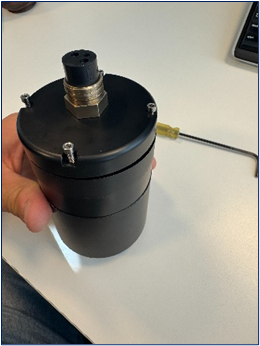

Start by connecting the battery harness (endbell) to the 2-pin connectors (battery) (Step 4). Then place the new battery into the canister, secure the battery in place and then tightly place the battery connector down the open side of the battery (Step 5). Connect the endbell back to the battery canister and make sure the screw openings align, and the two tabs on the endbell are aligned with the sides of the battery, then gently push until secure, proceed to fitting and tightening the screws (Step 6).
Step 4 |
Step 5 |
Step 6 |
