Familiarize yourself with the content of the instrument box

Below you can find detailed information on the individual items that you received with the Gen2 Aquadopp.

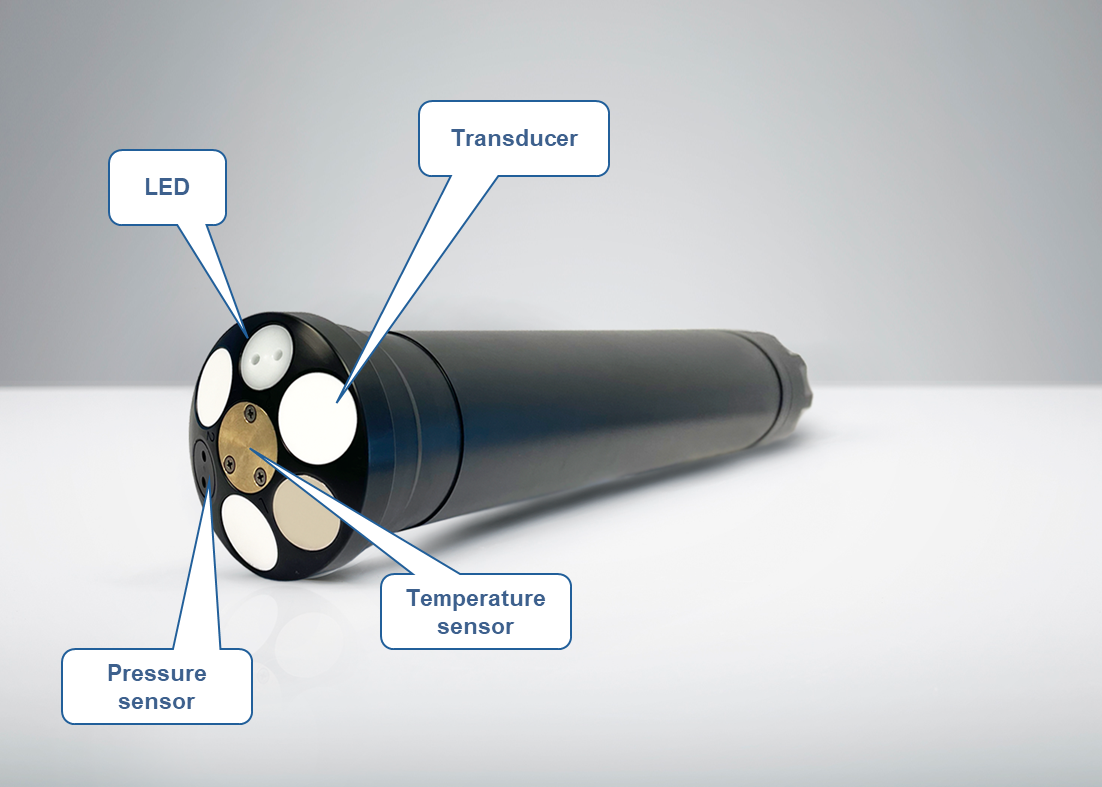

Instrument

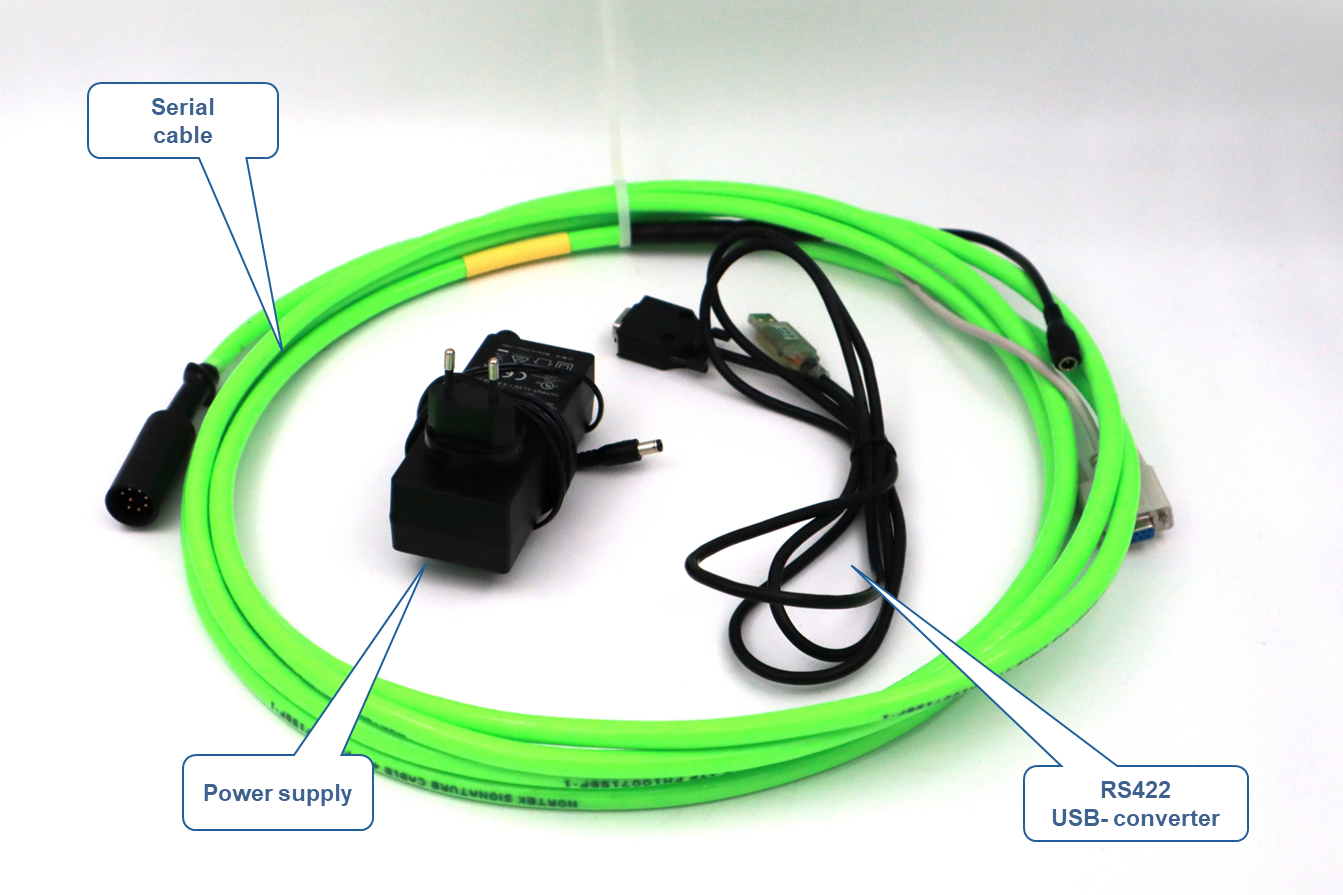

Cables

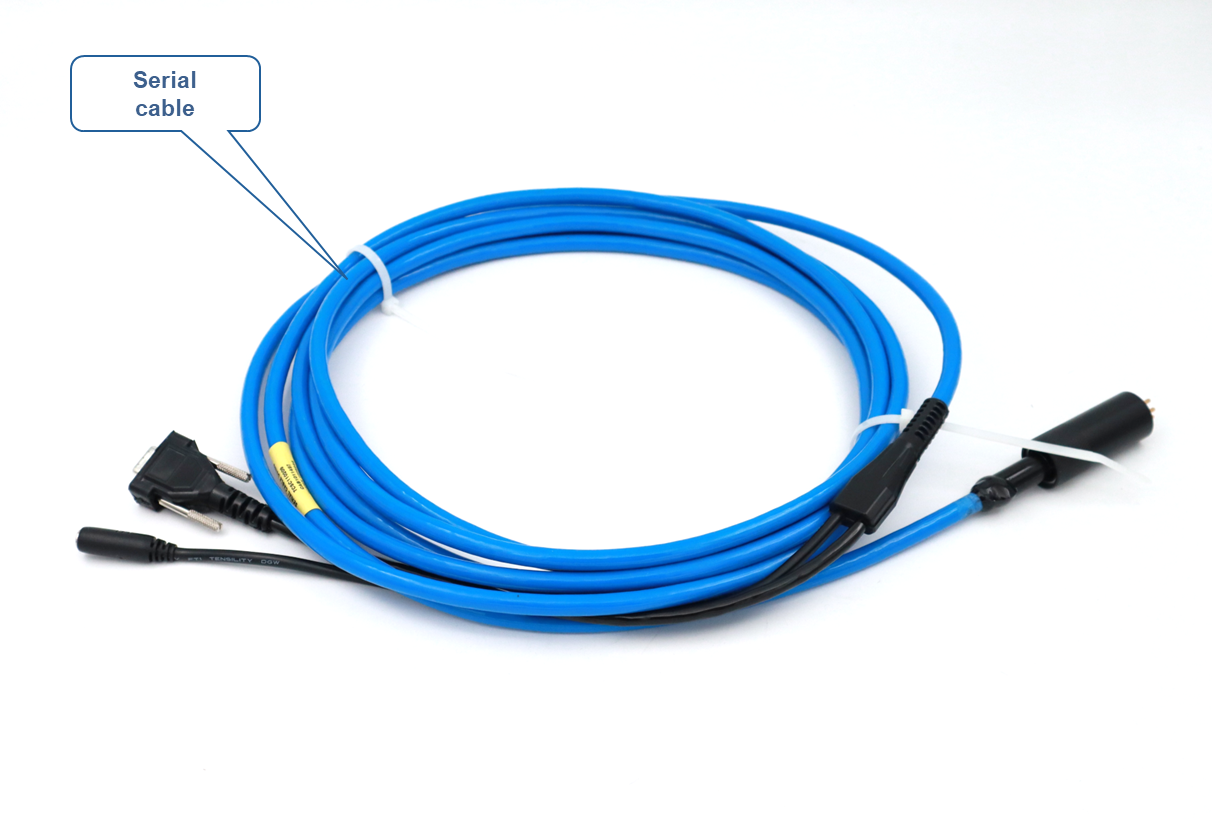

đź’ˇ NOTE: For instruments shipped from January 2026, the serial cable for the Gen2 Aquadopp is blue

The serial cable delivered with the Aquadopp 2 can be used both for RS232 and RS422 communication. The Aquadopp is by default using RS422 as the serial communication protocol and is delivered with an RS422 converter. An additional RS232 converter may be ordered with the instrument. For instructions on how to change the serial communication protocol see the following article: How can I change the serial protocol on my Aquadopp 2?

Auxiliary components

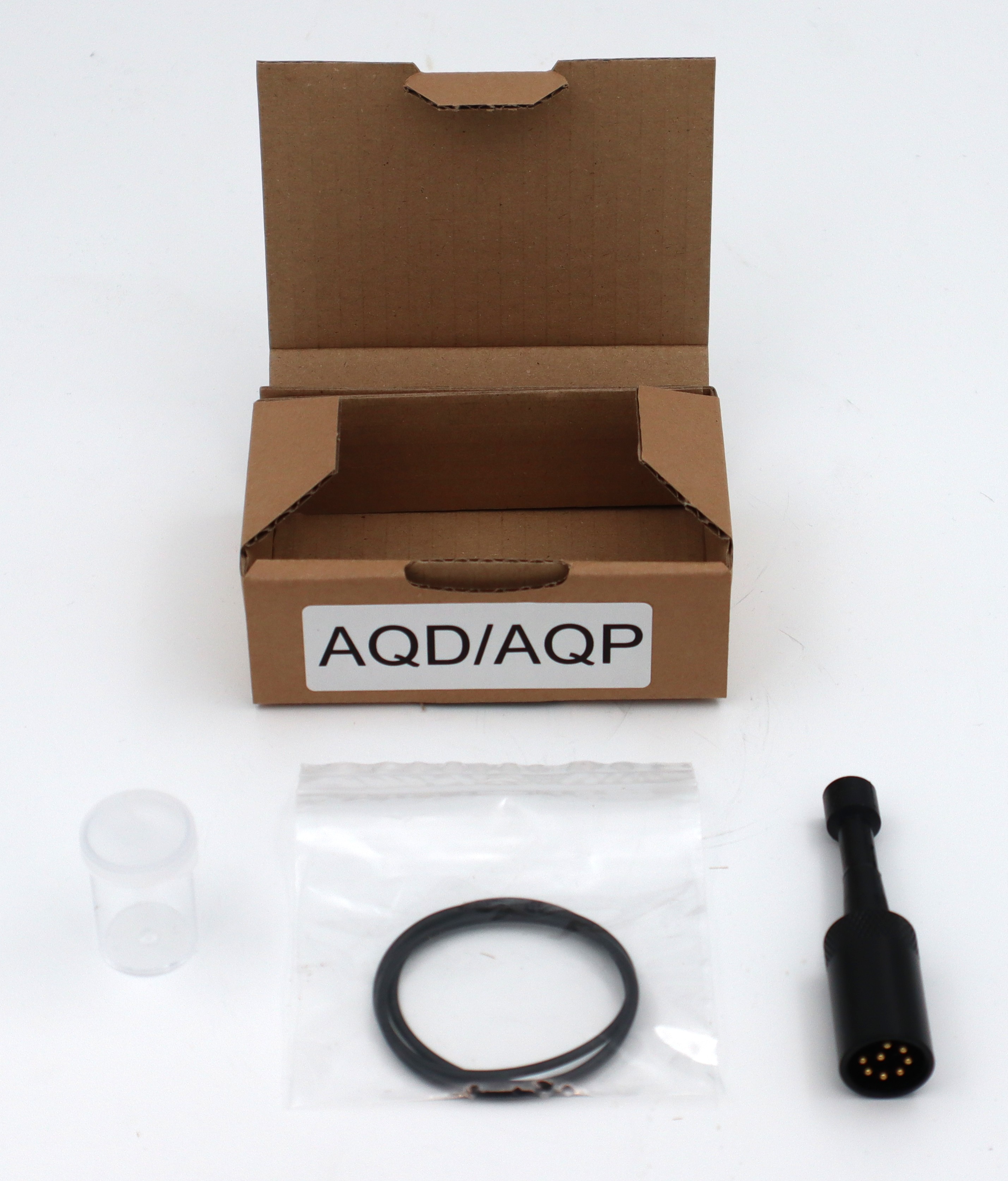

The toolkit contains:

  • Molykote 111 Silicone grease for lubricating the connector and O-rings.

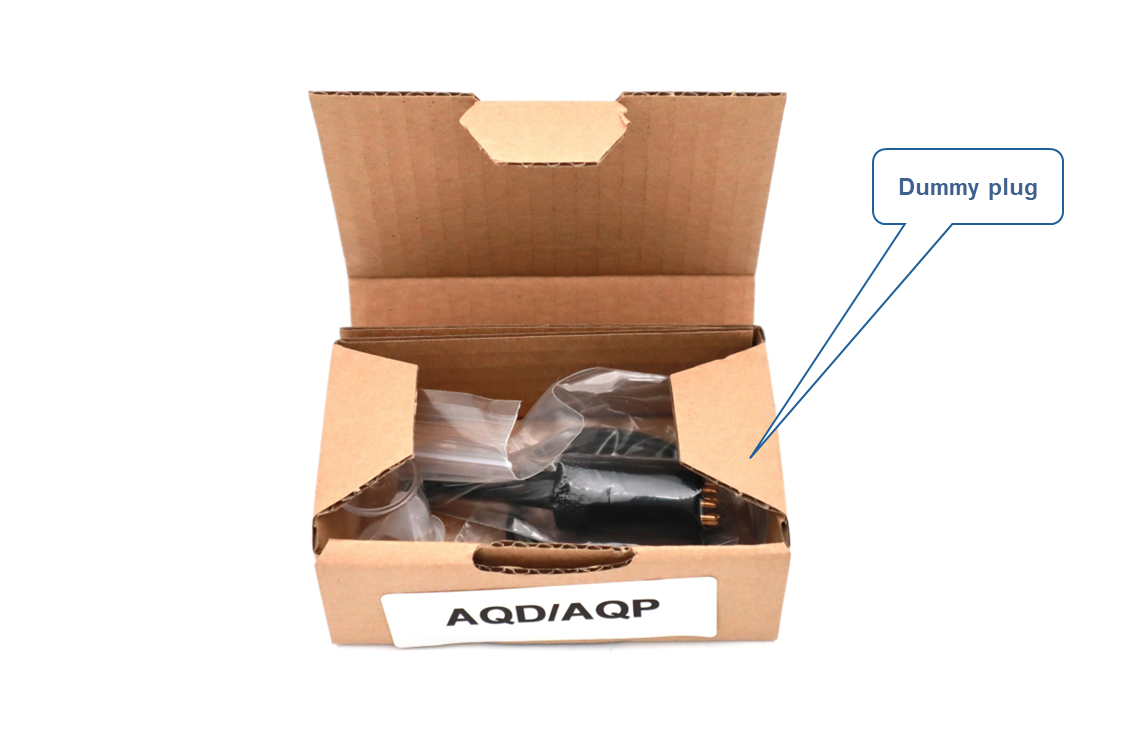

  • Dummy plug for protecting the instrument connector when operating on batteries.
  • Spare end bell O-rings.
