Below you can find detailed information on the individual items that you receive with the Signature.
Instrument

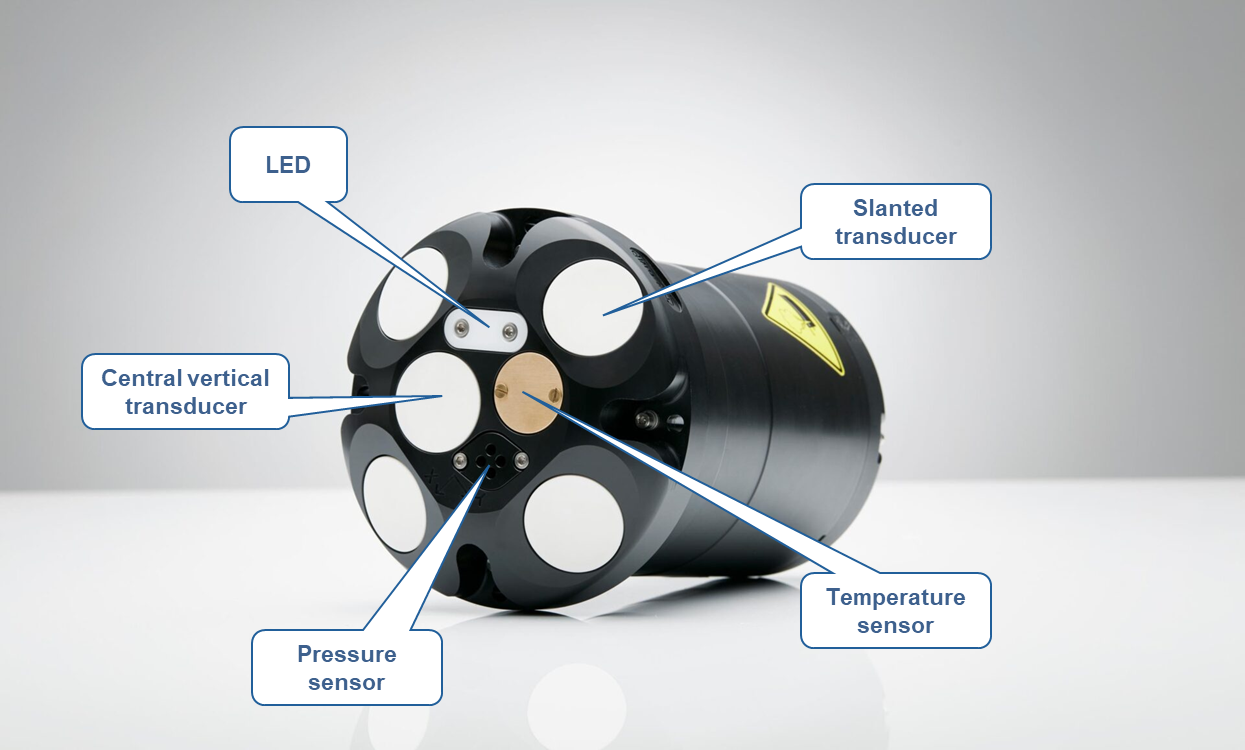

The picture shows a Siganture 1000 with the different main parts highlighted. The design of your specific instrument will vary depending on which version of the Signature you have purchased.
Cables

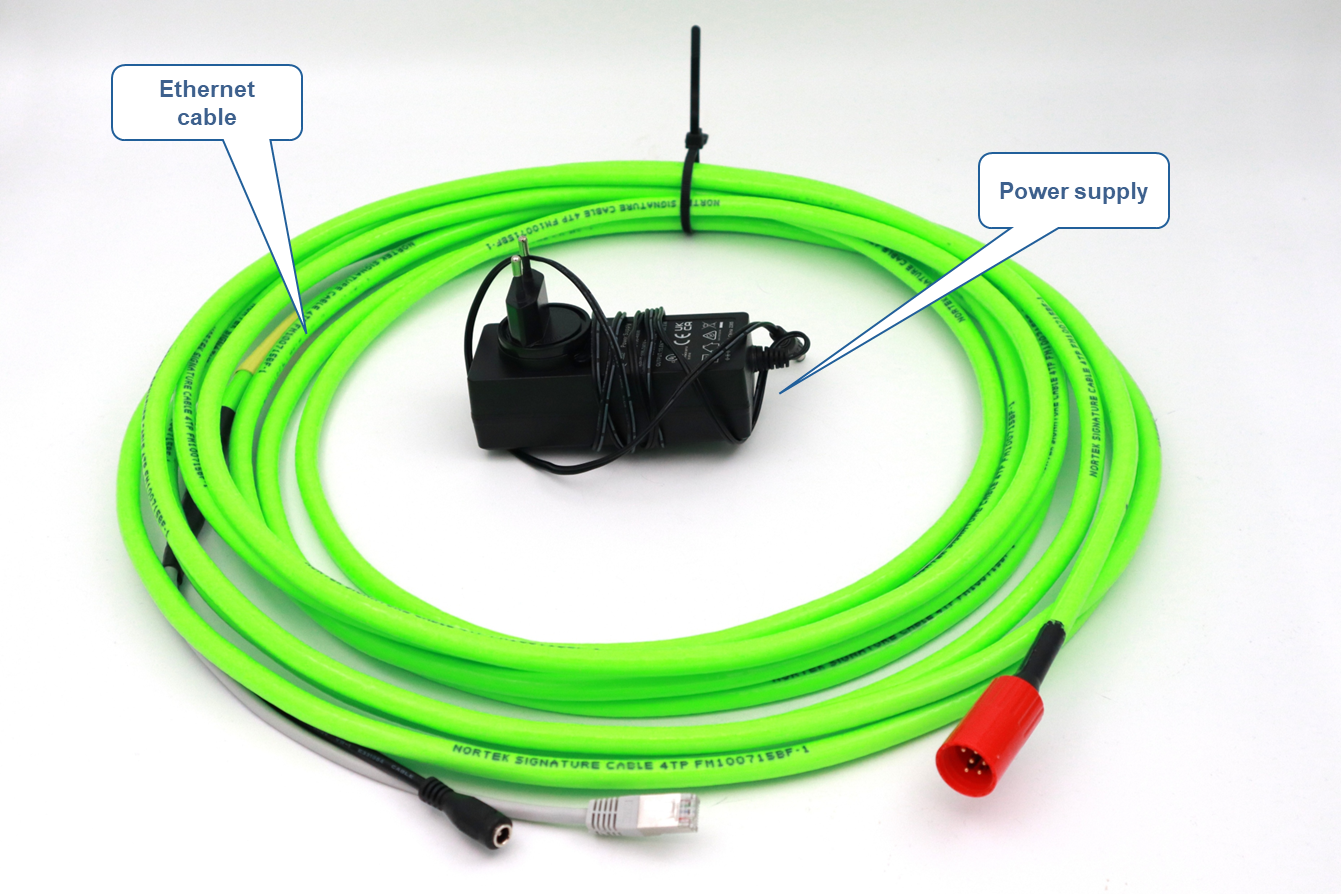

The Signature instrument is always delivered with an Ethernet cable. The Ethernet connection serves as the main communication interface. The instrument can also be ordered to support serial communication. The instrument will then also be delivered with a serial cable.

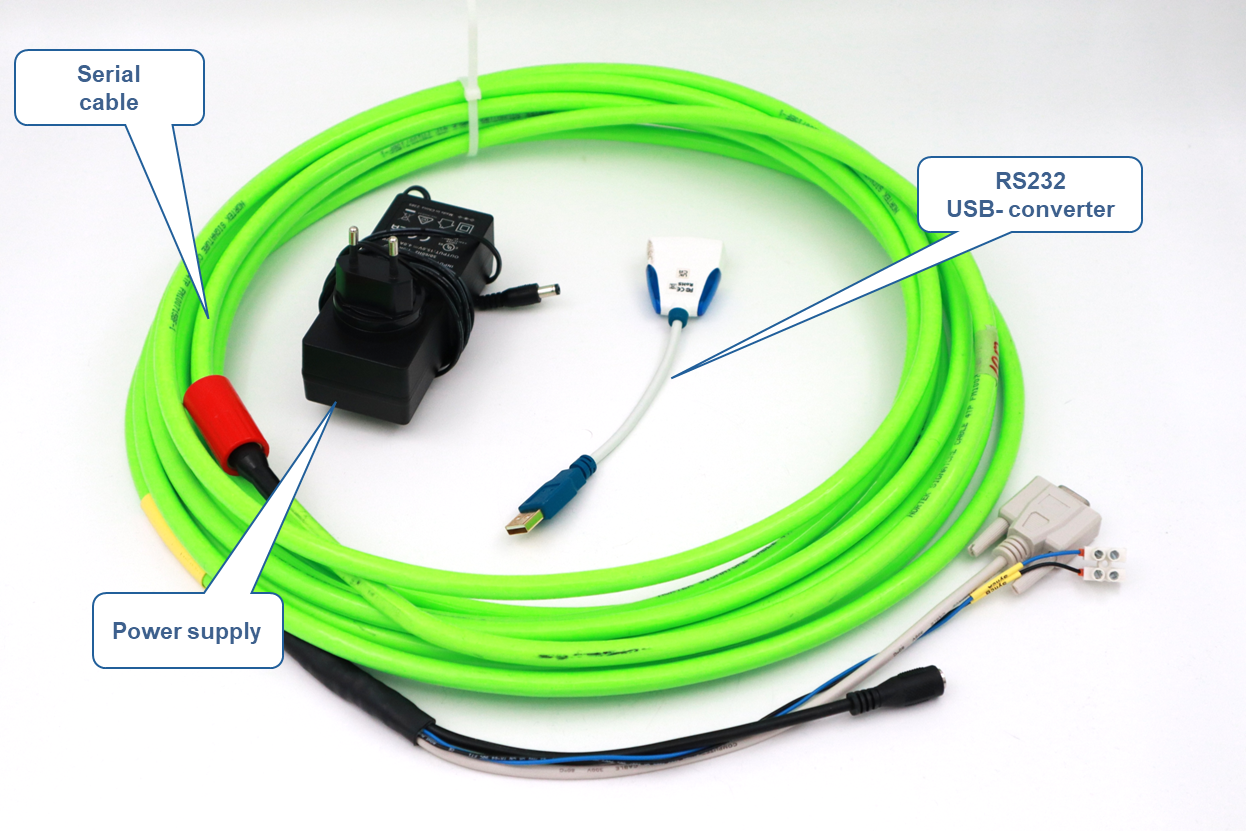

The serial cable delivered with teh Siganture can be used both for RS232 and RS422 communication. The Signature is by default using RS232 as the serial communication protocol and is delivered with an RS232 converter. An additional RS422 converter may be ordered with the instrument. For instructions on how to change the serial communication protocol see the following article: How can I change the communication protocol from RS232 to RS422 on my Signature?
Auxiliary components

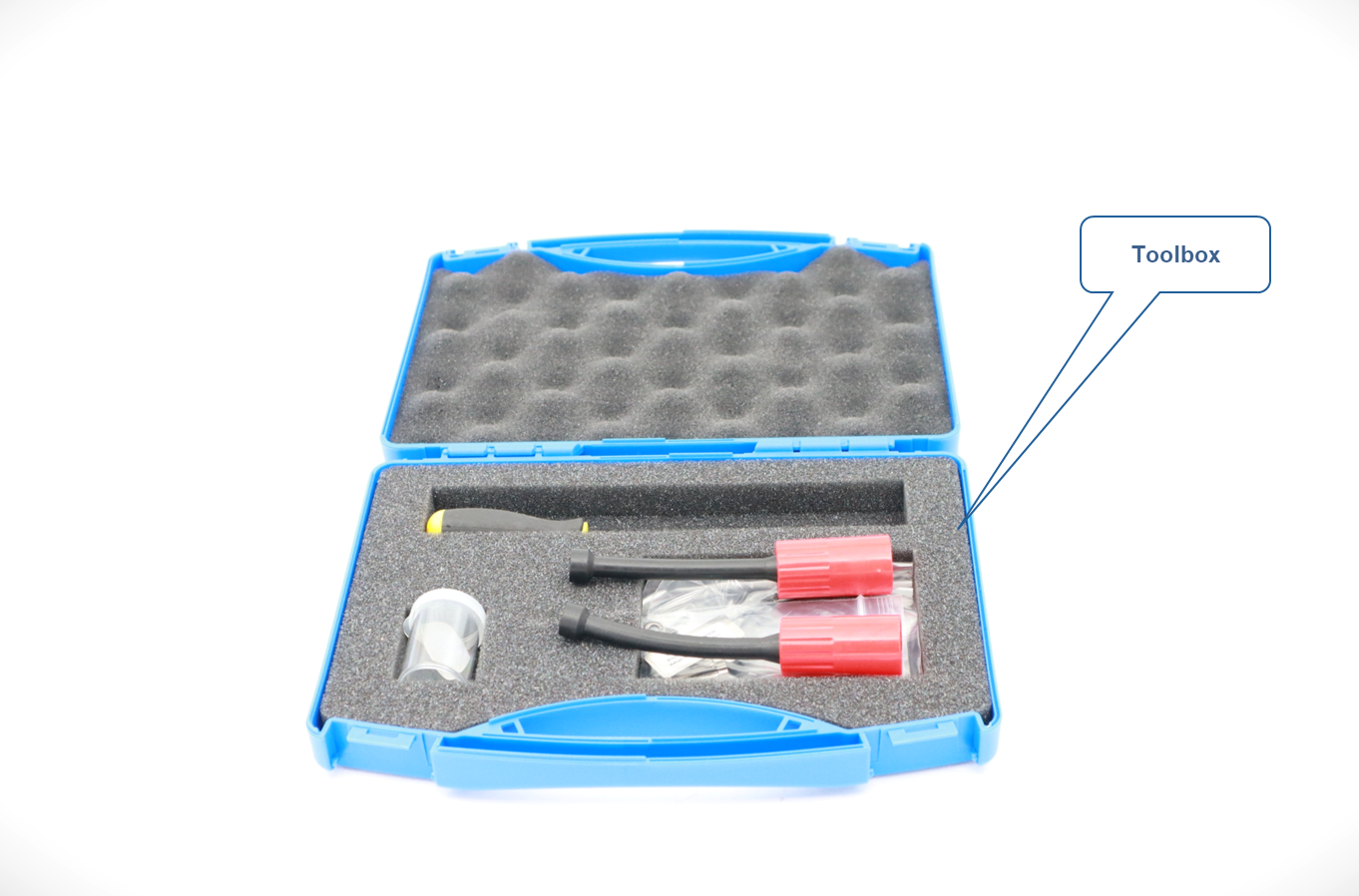

The toolkit contains:
- Molykote 111 Silicone grease for lubricating the O-rings.
- Dummy plug for protecting the instrument connector when operating on batteries.
- Spare end bell O-rings.
- A screwdriver to unscrew the end bell of the instrument
Quick Guide
Inside the instrument box, you will also find a short document, outlining the first steps when receiving your instrument. The information provided there, is discussed in greater detail as part of this Getting Started section.
If you wish to access the Quick Guides as a PDF, please see the documents below:
