Connector Pinout - Signature

Below you can find drawings of available connector pin configurations for the Signature instruments. Other configurations are available upon request.

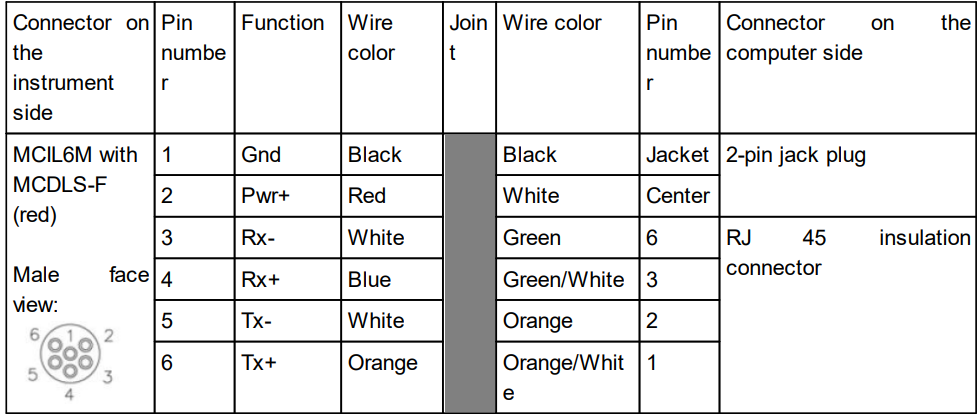

6-pin connector, Standalone, Ethernet

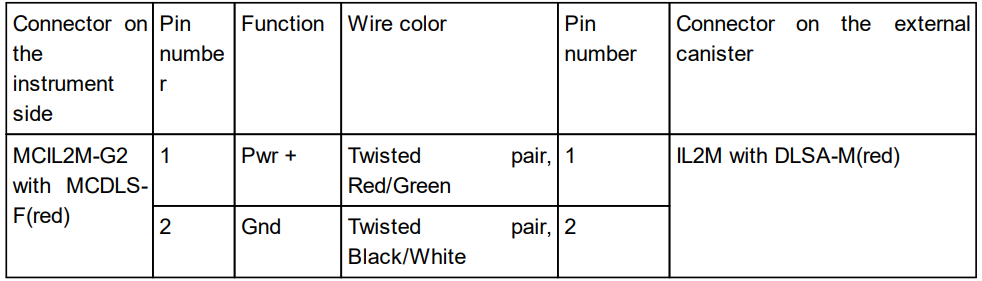

2-pin connector

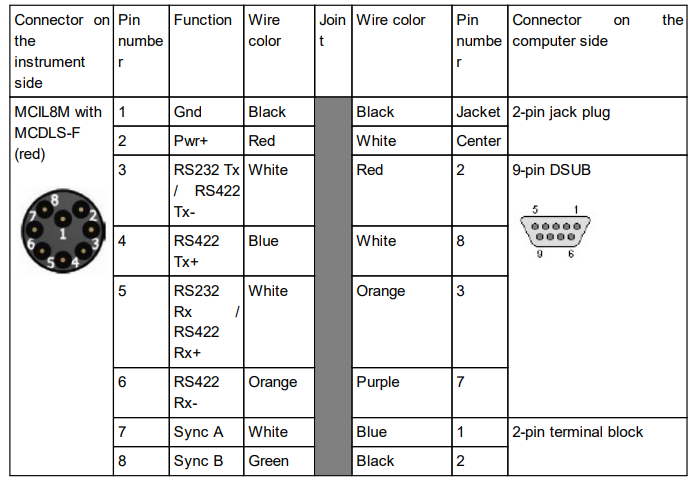

8-pin connector, Serial communication w/RS485 sync

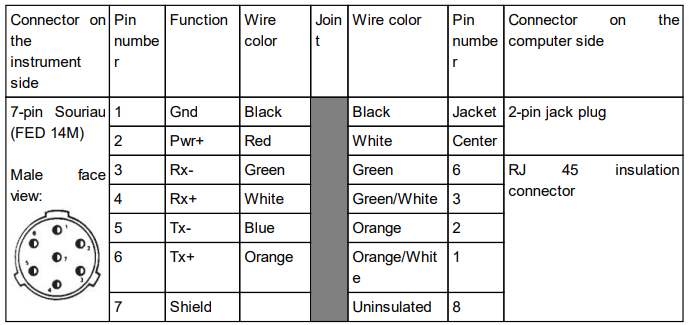

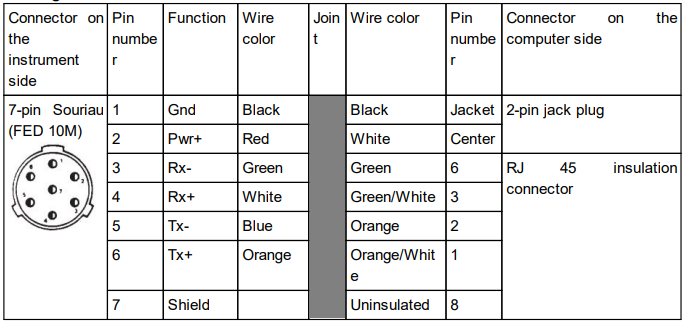

7-pin Souriau connector (10M, 14M), Online, Ethernet
