What is the difference between Z and Up?Follow

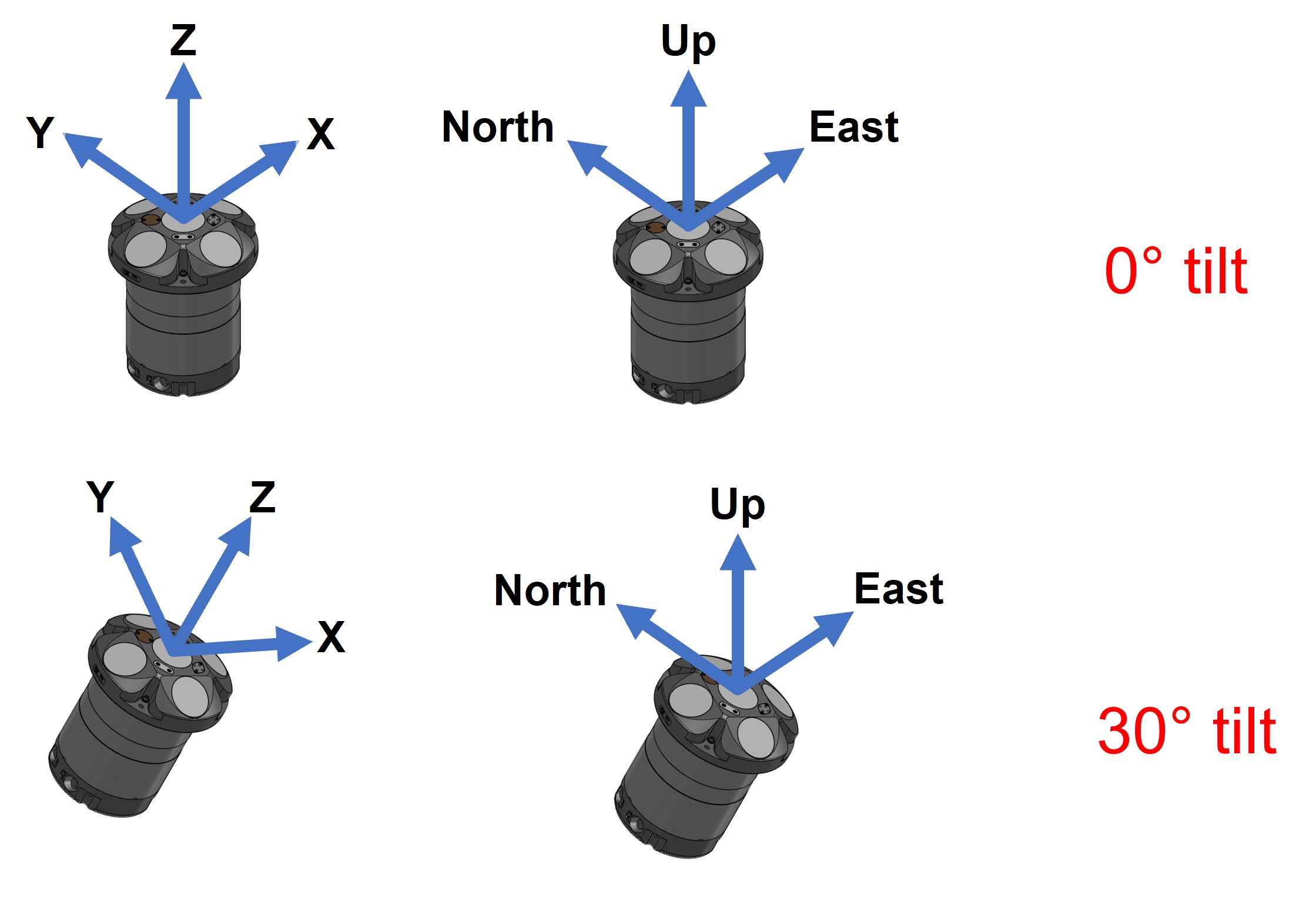

Z and Up are both measurements of vertical velocity, but with different reference points.
- Z always points directly out from the centre of the ADCP head, and will measure different planes depending on how the ADCP is orientated. For example, if the ADCP is tilted 10°, Z will measure a plane 10° from vertical.
- Up is referenced to the Earth, and points upwards regardless of how the ADCP is orientated in space. For example, if the ADCP is tilted 10°, Up will still measure vertical velocity.
You can find Z and Up by using the Right-Hand Rule; see The Comprehensive Manual - ADCP for more information.
